产品特点：Features &Benefits
- 马达具备刹车功能，采用美国SUN平衡阀安全可靠，故障率低
The motor features a braking function and uses American SUN balancing valves for safety and reliability,with a low failure rate.

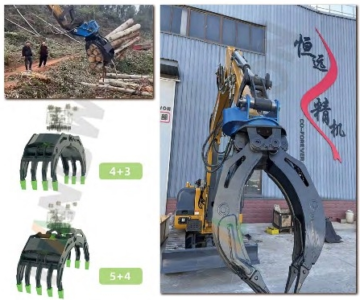

- 可按需定制加宽3+2,4+3或5+4型
Customizable to 3+2,4+3,or 5+4 configurations as needed.
- 智能化控制，一键归正
Intelligent control with one-button reset.
| 型 号 M o d e l GBK02 GBK04 GBK06 GBK08 GBK10 | |||||||||
| 重量 Weight | 375-395kg | 400-430kg | 765-795kg | 1420-1450kg | 1700kg | ||||
| 夹口尺寸
MaxJaw Opening |
1247mm | 1350mm | 1650mm | 2375mm | 2493mm | ||||
| 油缸流量
Flow Cylinder |
10-20 L/min | 15 | -25 L/min | 30-40 L/min | 55-65 L/min | 80-95 L/min | |||
| 马达流量
Necessary Flow |
30-55 lpm | 3 | 0-55 lpm | 40-70 lpm | 40-70 lpm | 40-70 lpm | |||
| 尺寸
Dimension |
1332*595*405mm | 1365*630*405mm | 1765*805*550mm | 2106*1068*675mm | 2308*1120*812mm | ||||
| 适配挖机
Compatible Excavator |
4-6 ton | 6-9ton | 12-16 ton | 17-25 ton | 26-35 ton | ||||
