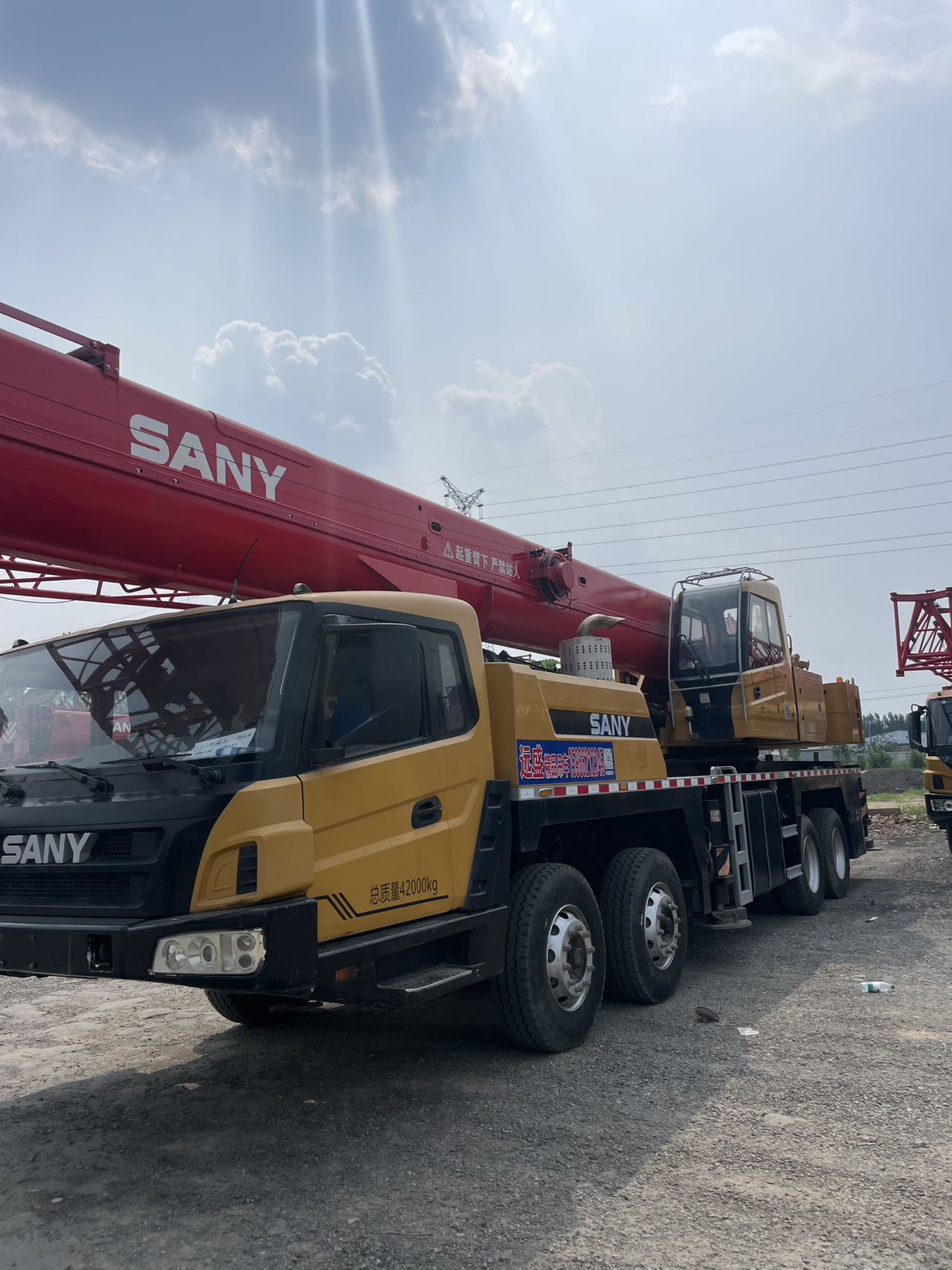

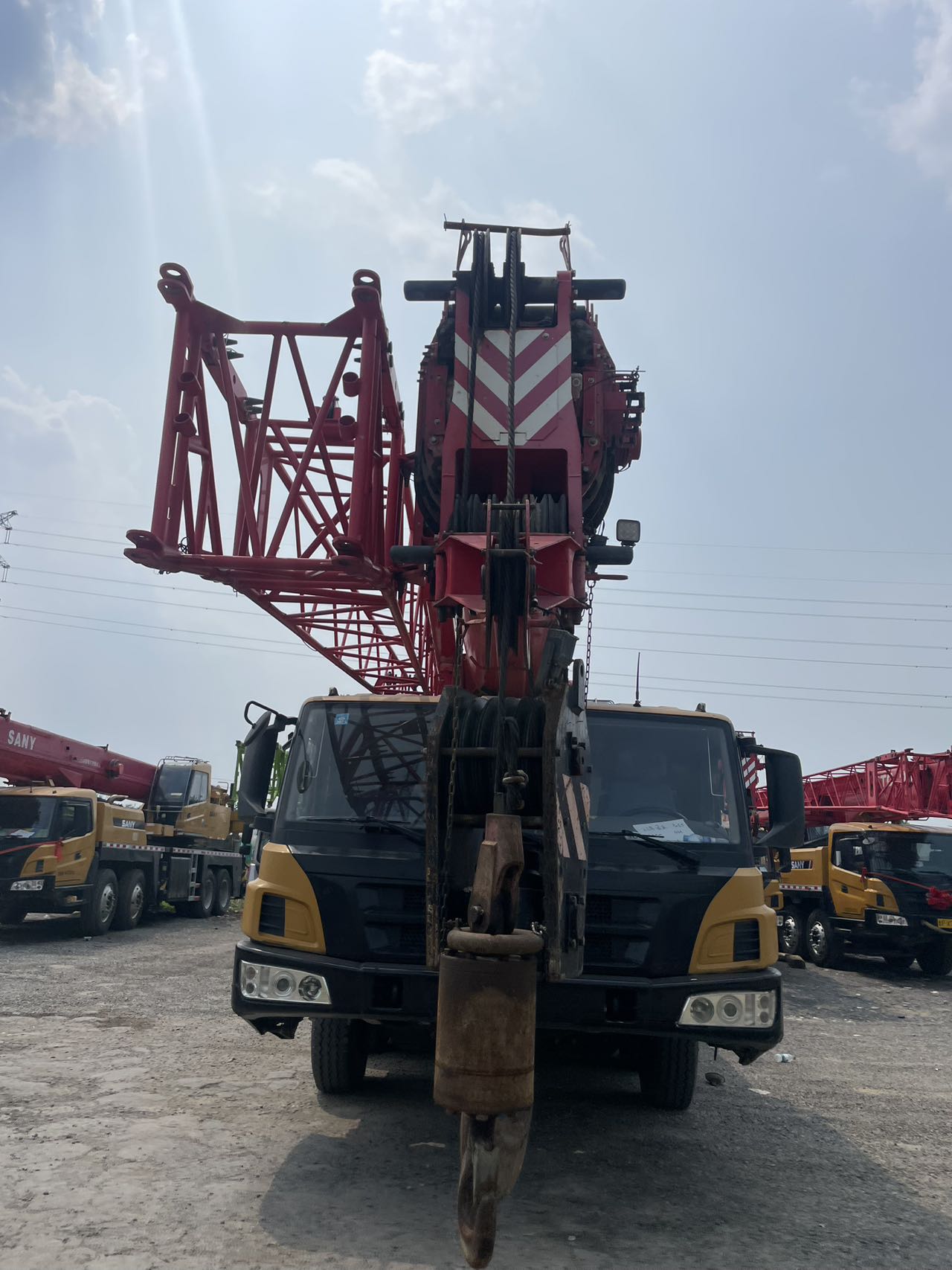

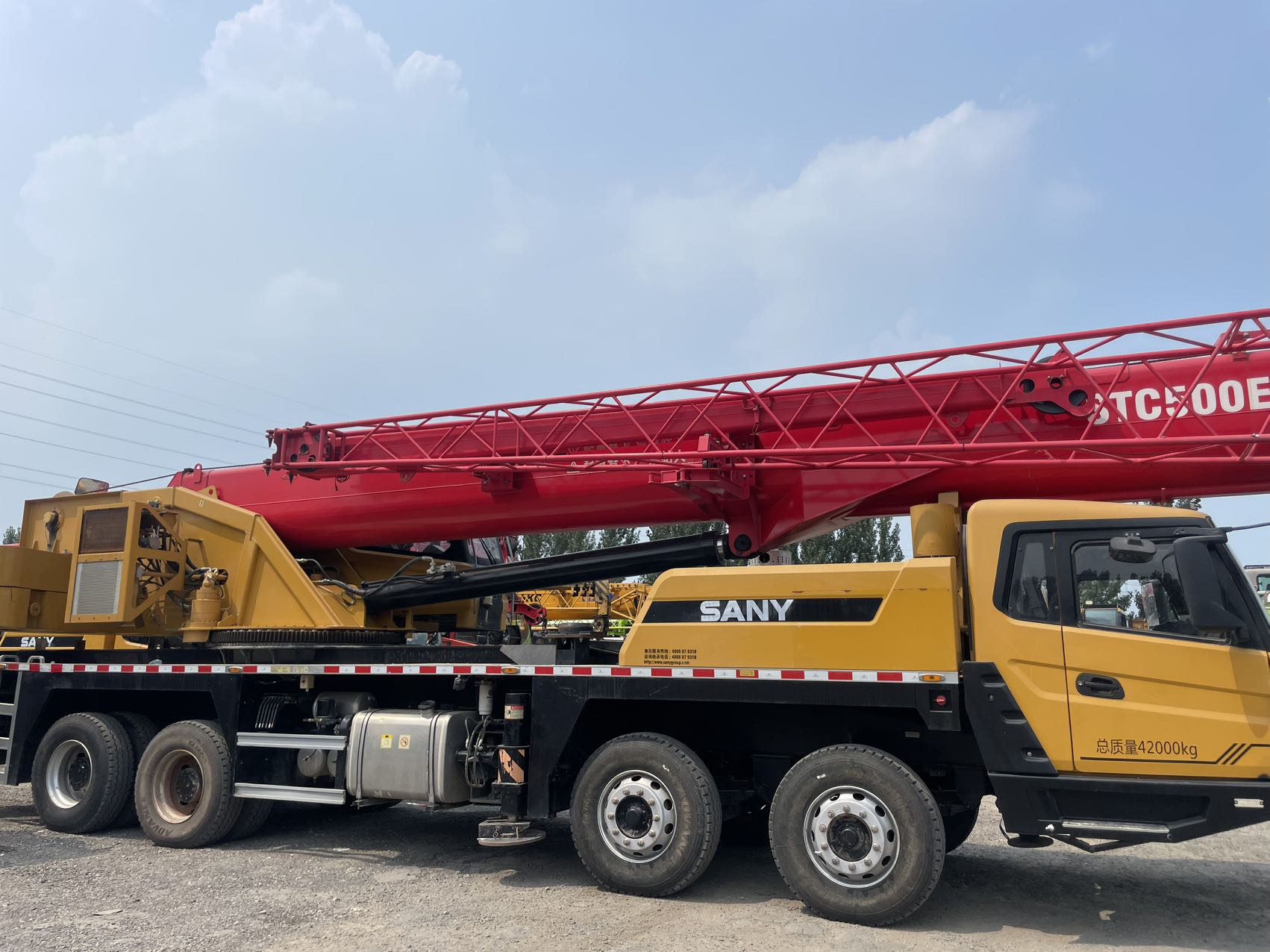

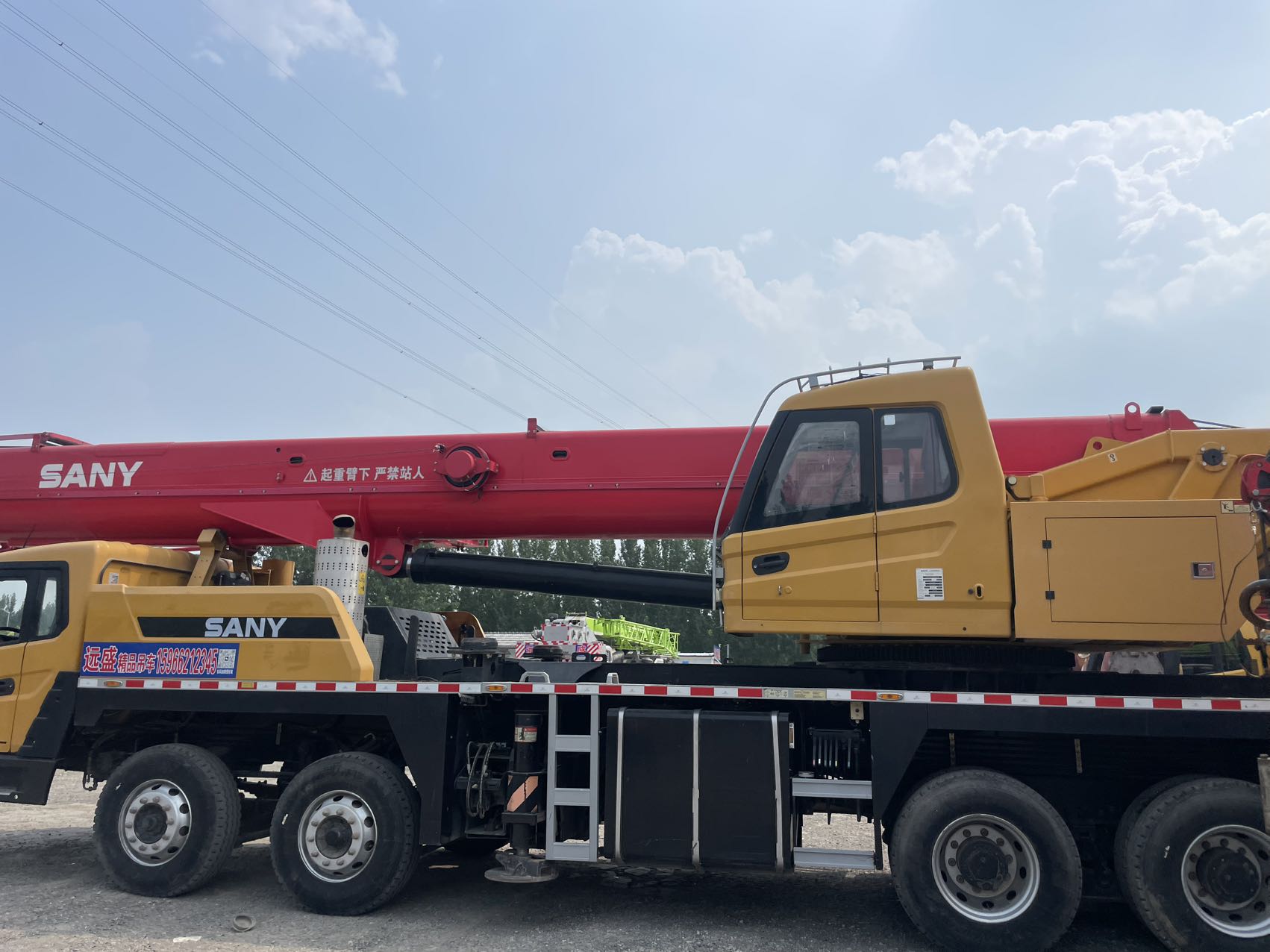

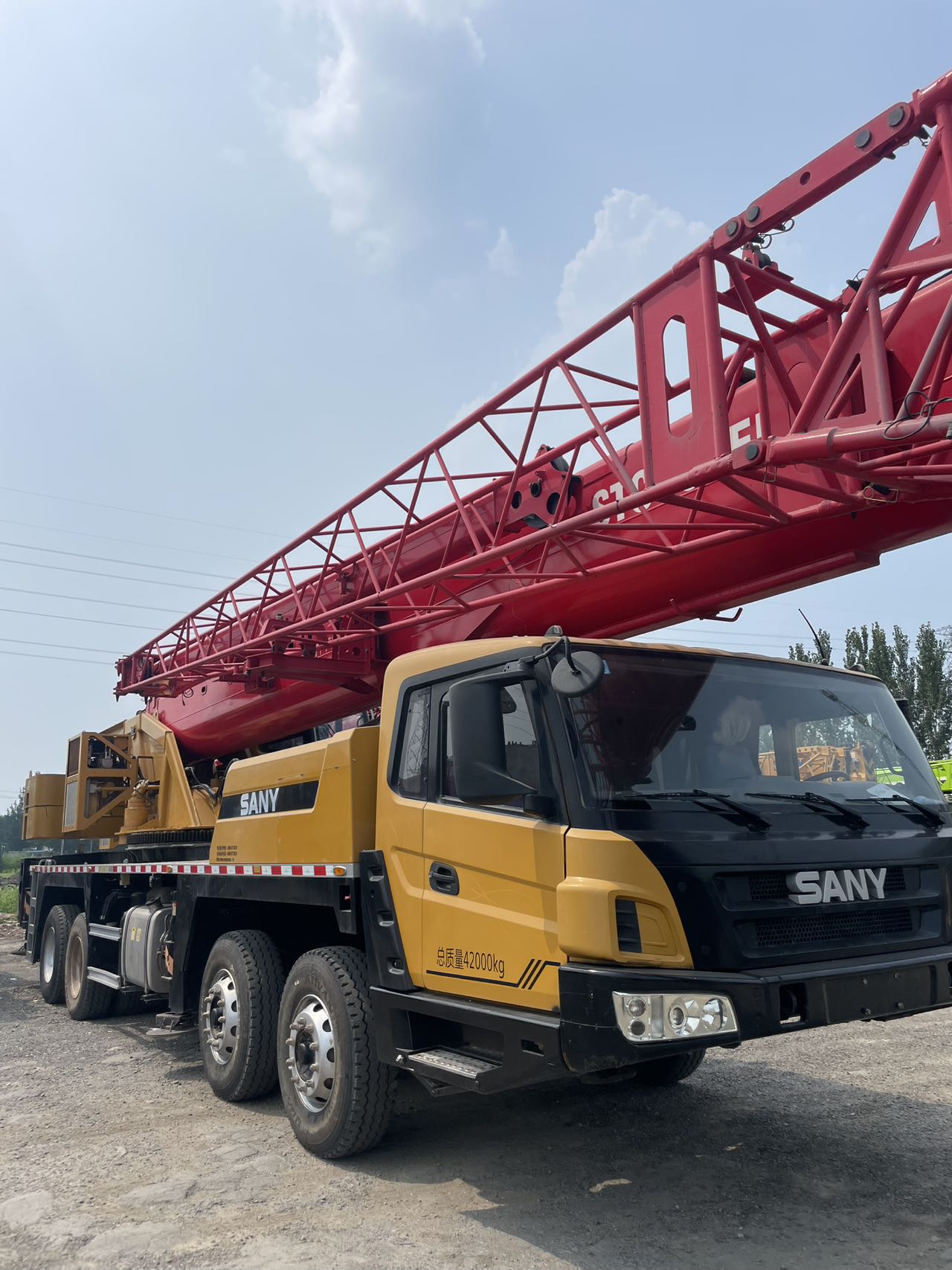

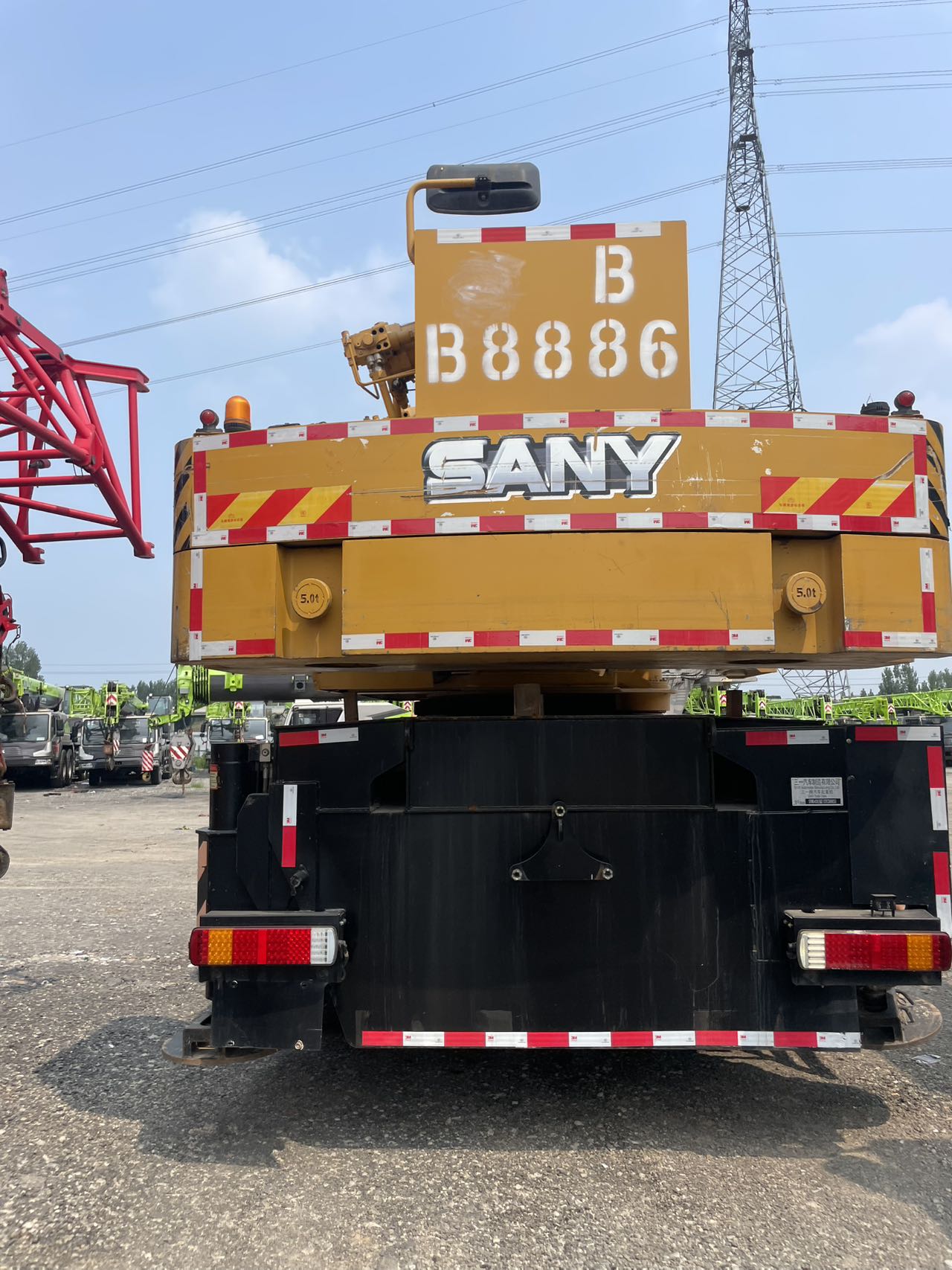

SANY STC500E5

Total machine mass 42000kg
Total machine length 14150mm
Total machine width 2800mm
Total machine height 3800mm
Outrigger span (transverse × longitudinal) 7.4×6.05m
Engine model Weichai WP9H336E62
Maximum engine power 247kW/1900rpm
Maximum engine output torque 1600N·m/(1000-1400)rpm
Maximum driving speed 85km/h
Minimum turning radius 12m
Minimum ground clearance 320mm
Approach angle ≥19°
Departure angle ≥14°
Braking distance (at a speed of 30km/h) ≤10m
Maximum climbing gradient 47%
Fuel consumption per 100km ≤40L
Maximum rated total lifting capacity 50t
Minimum rated radius 3m
Swing radius of turntable tail 3.95m
Maximum lifting torque (basic boom) 2107kN·m
Maximum lifting torque (longest main boom) 1254kN·m
Lifting height (basic boom) 12.1m
Lifting height (longest main boom) 46m
Lifting height (longest main boom + jib) 62m
Boom length (basic boom) 11.74m
Boom length (longest main boom) 45.5m
Boom length (longest main boom + jib) 61.5m
Jib installation angle 0°, 15°, 30°
Maximum speed of main hoist single rope (no-load) 145m/min
Maximum speed of auxiliary hoist single rope (no-load) 145m/min
Full extension/retraction time of boom 90/110s
Full lifting/lowering time of boom 45/70s
Swing speed 0~2r/min
Full extension/retraction time of horizontal outriggers 20/20s
Full retraction/extension time of vertical outriggers 30/30s
